CASE STUDY: Shoreditch Warehouse
Case Study: Shoreditch Warehouse – Scan to BIM Survey, London
Location: Shoreditch, London
Brief: Laser Scan Survey & Revit Model
Deliverables: .RVT & .RCP pointcloud files
PointBIM carried out a laser scan survey and Scan to BIM service for a former warehouse in Shoreditch, London, delivering a coordinated Revit model to support early-stage design and refurbishment planning as part of our Scan to BIM services in London.
Project Scope
The client required a full 3D record of a former warehouse building in Shoreditch to support early-stage design and refurbishment planning.
The scope included capture of the existing structure, floor plates, façade geometry and roof form to provide a reliable base for feasibility and coordination.
Our Approach
A terrestrial laser scan survey was completed to capture the building geometry in full.

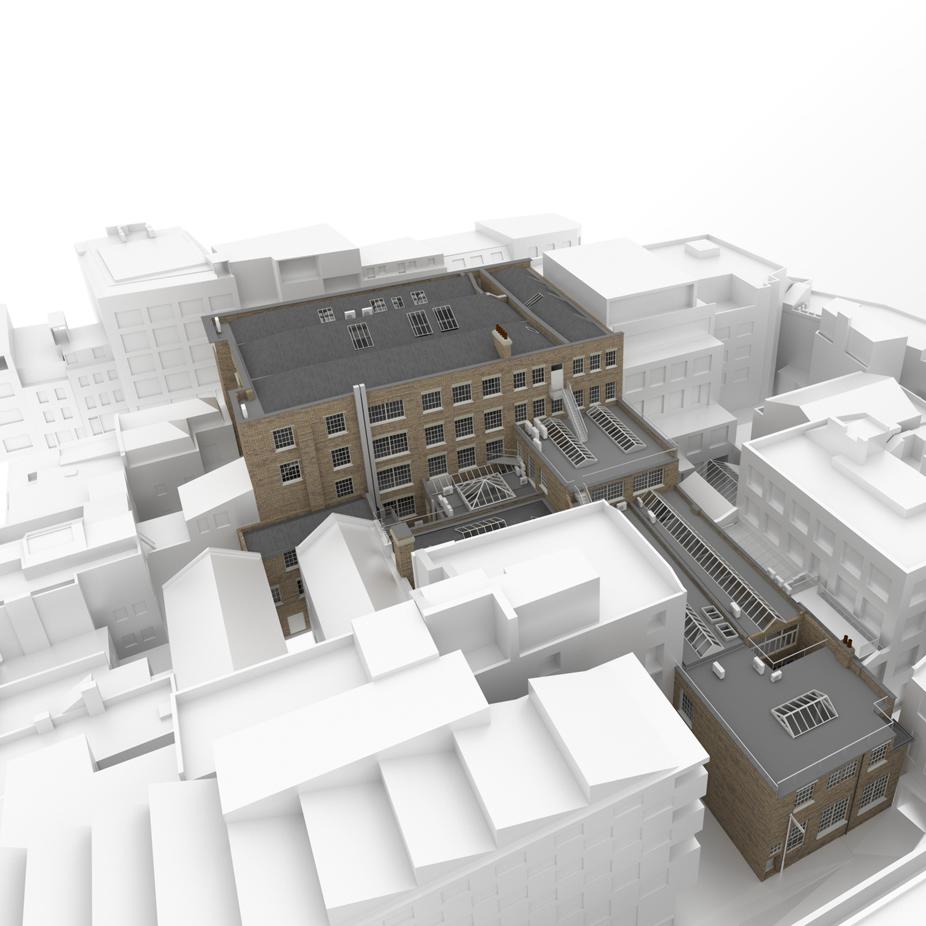

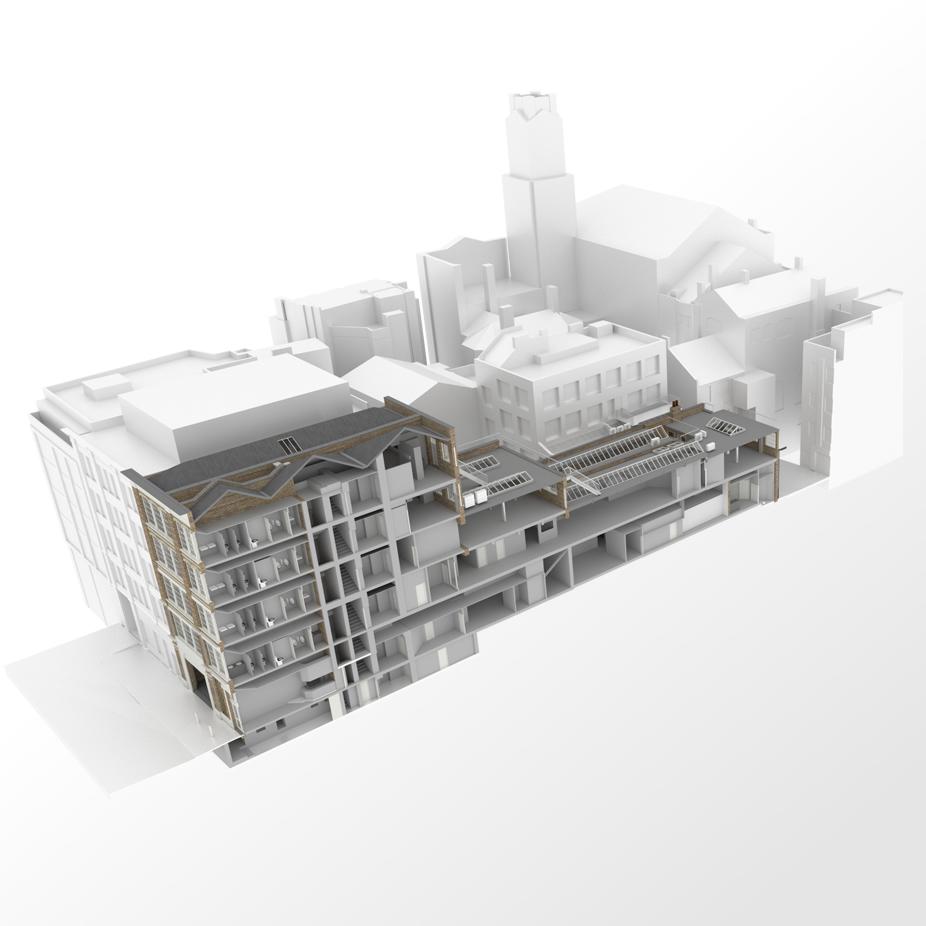

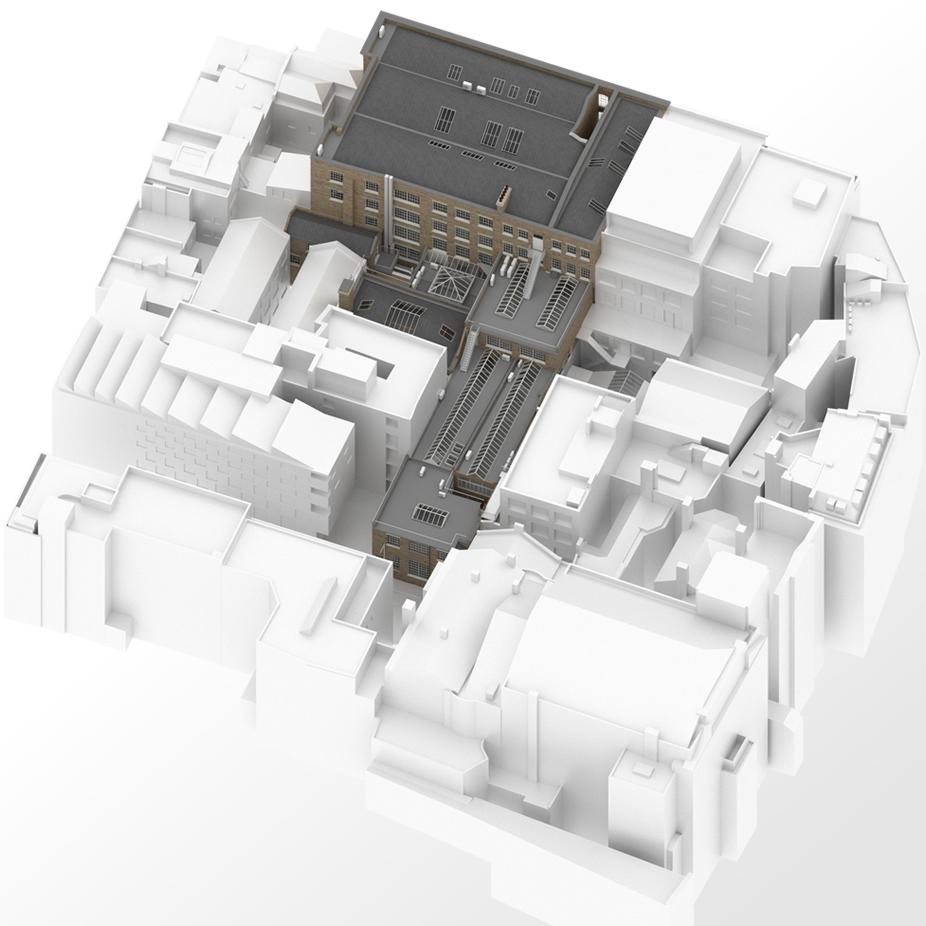

The point cloud data was processed and modelled into a coordinated Revit model, aligned to the architect’s project coordinate system and structured to support downstream design development.
Deliverables
- Registered point cloud (RCP/RCS)
- Coordinated Revit model (architectural)
- Model suitable for feasibility, planning and design coordination
