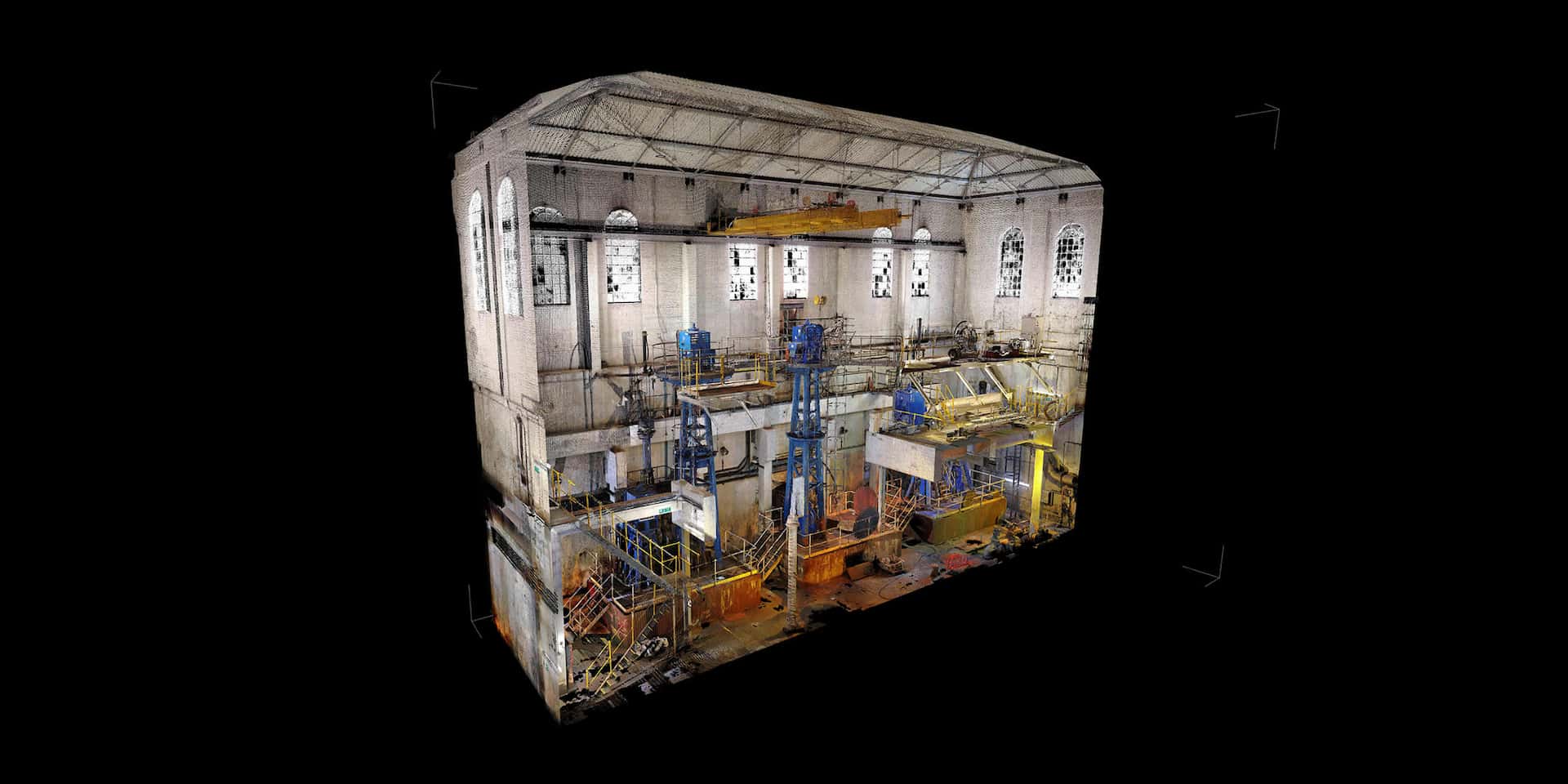

Plant Room Laser Scanning & Measured Surveys
PointBIM provides accurate laser scanning and measured surveys of mechanical plant rooms and pump rooms, producing reliable as-built drawings from point cloud data. Surveys are carried out in live, operational environments and are suitable for refurbishment, replacement, and asset documentation projects. The resulting drawings provide a clear and dependable record of existing plant, pipework, and spatial constraints to support design coordination and construction planning.
Where Plant Room Surveys Add Value
We regularly carry out plant room laser scanning and measured surveys for:
- Mechanical and electrical plant rooms
- Pump rooms and utility spaces
- Operational and live service environments
- Retrofit and replacement projects
- Asset management and facilities documentation
Laser scanning allows complex plant spaces to be captured accurately without service shutdowns. The survey data supports confident decision-making where existing records are incomplete, outdated, or unreliable.
Deliverables We Provide
- Typical deliverables for plant room laser scanning projects include:
- AutoCAD plans, sections, and elevations
- Accurate as-built drawings of plant, pipework, and equipment
- Equipment location and clearance layouts
- Drawings referenced to local or OS datum and grid
- Registered point cloud data (where required)

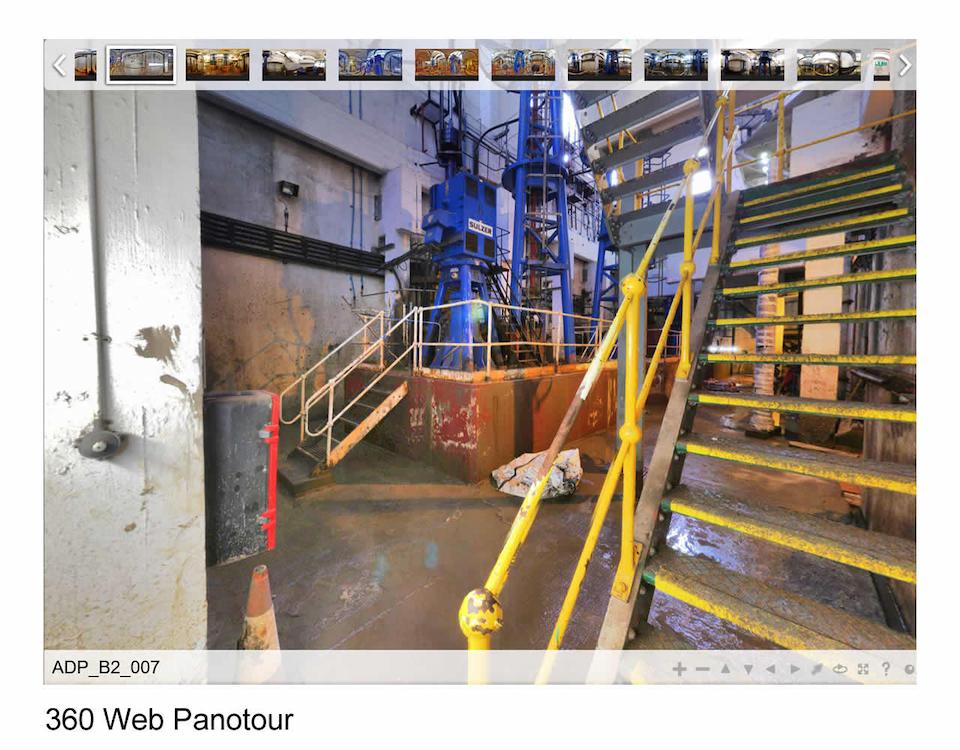

- 360° photographic reference imagery (optional)
Deliverables are issued in clear, usable formats suitable for consultants, contractors, and asset managers.
Frequently Asked Questions

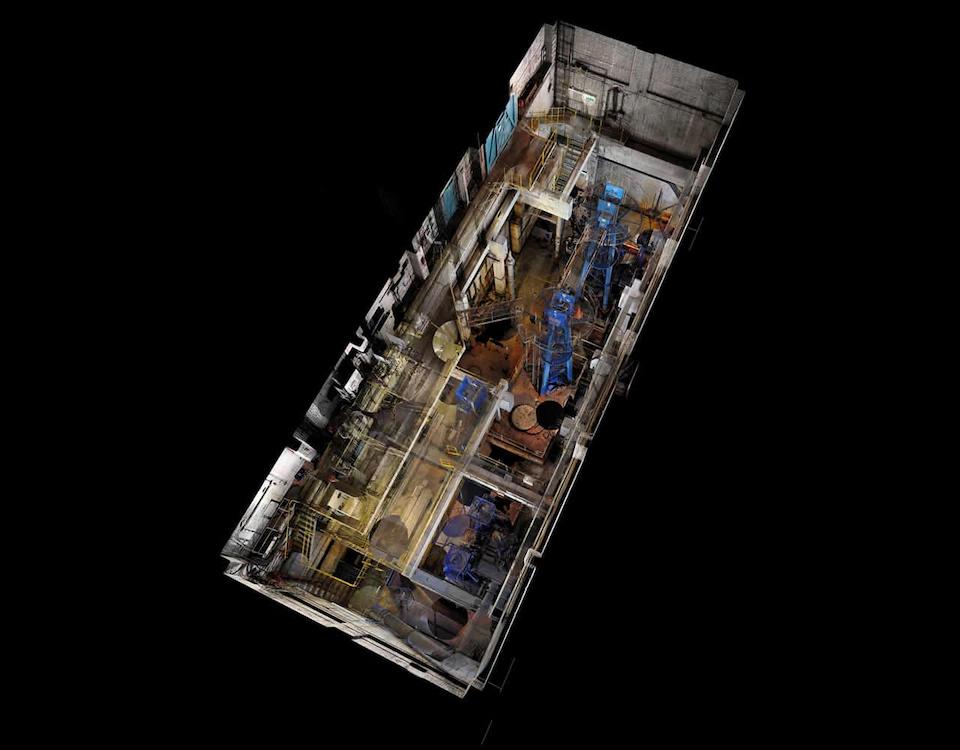

A plant room laser scanning survey uses terrestrial laser scanners to capture a high-accuracy 3D point cloud of an existing plant or pump room. The data is used to produce reliable measured drawings and as-built records.
Get a Plant Room Survey Quote →
Send us your site details and a brief description of the facility, and we’ll confirm scope, deliverables, and turnaround. Surveys can be carried out across the UK, including operational and industrial environments.
