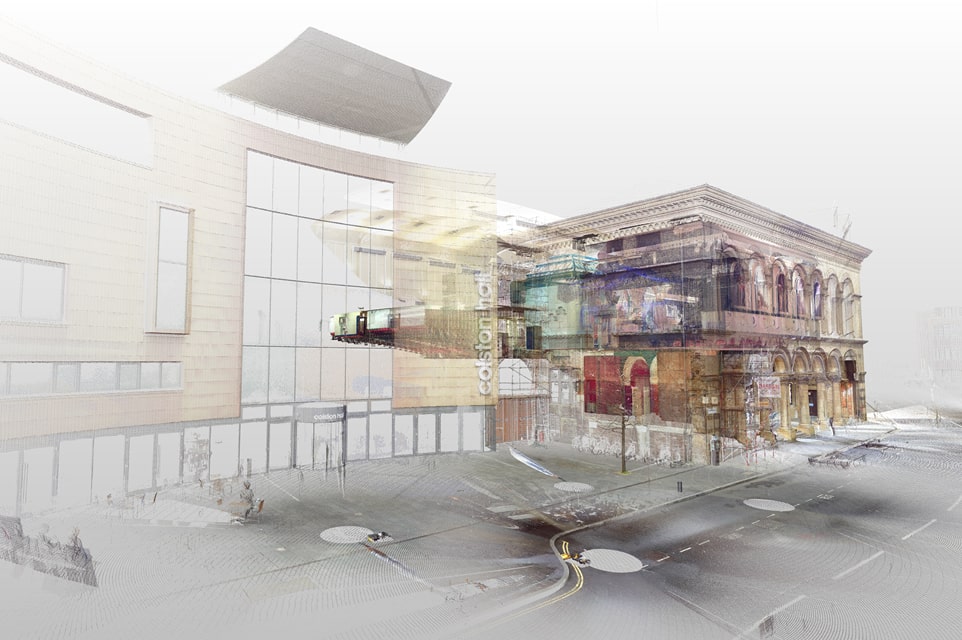

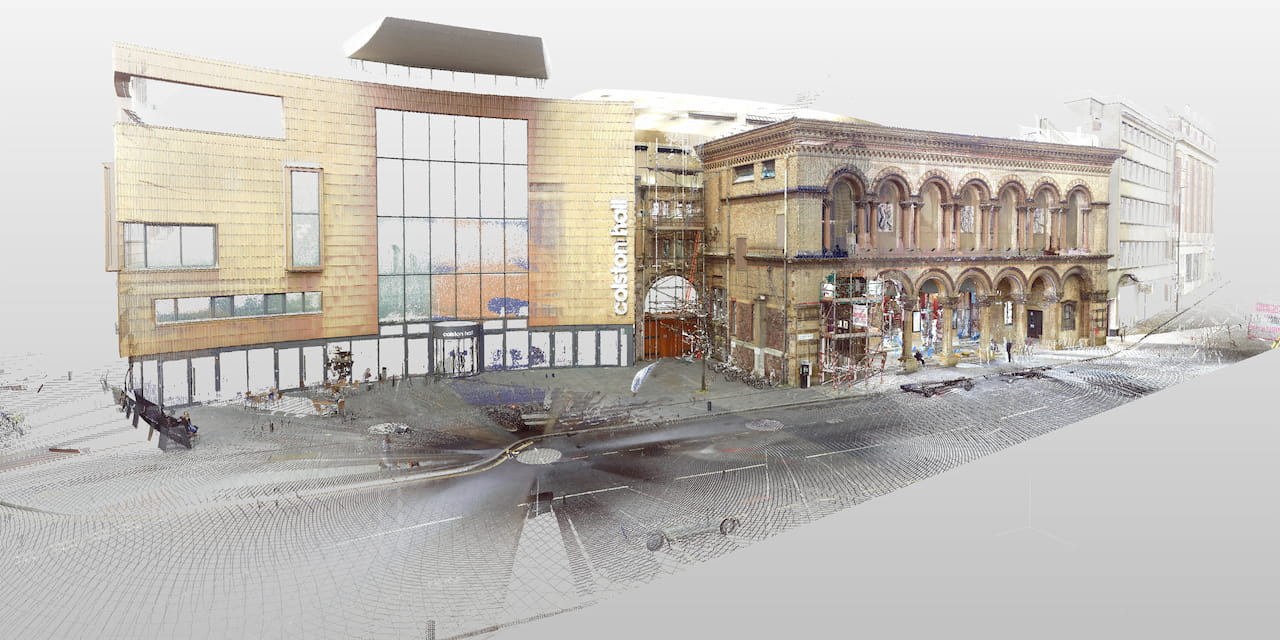

The client required a precise 3D record of the old entrance, including:

• Principal façade, canopies, doors and steps
• Foyer threshold and ticket-hall interface (as accessible)
• Adjacent paving, kerbs and street furniture for context
  The aim was to fix existing geometry ahead of demolition/alteration and to support downstream modelling by others.

We completed a short, tightly sequenced scan programme outside public opening hours to minimise disruption. A small control network was established and checked; all scans were colourised and registered to a common project coordinate system. QA checks covered overlap, residuals and coverage, with a brief scan report issued alongside the data.

• Unified registered, colour point cloud: RCP/RCS for Autodesk users and E57 exchange file
• Project coordinate report and scan limits sketch
• Basic clipping groups/view recommendations to speed up downstream modelling

Notes: This commission delivered point cloud only. The design team handled all post-processing/model build in their own software.
